RAM Twist-Lock Composite Suction Mount

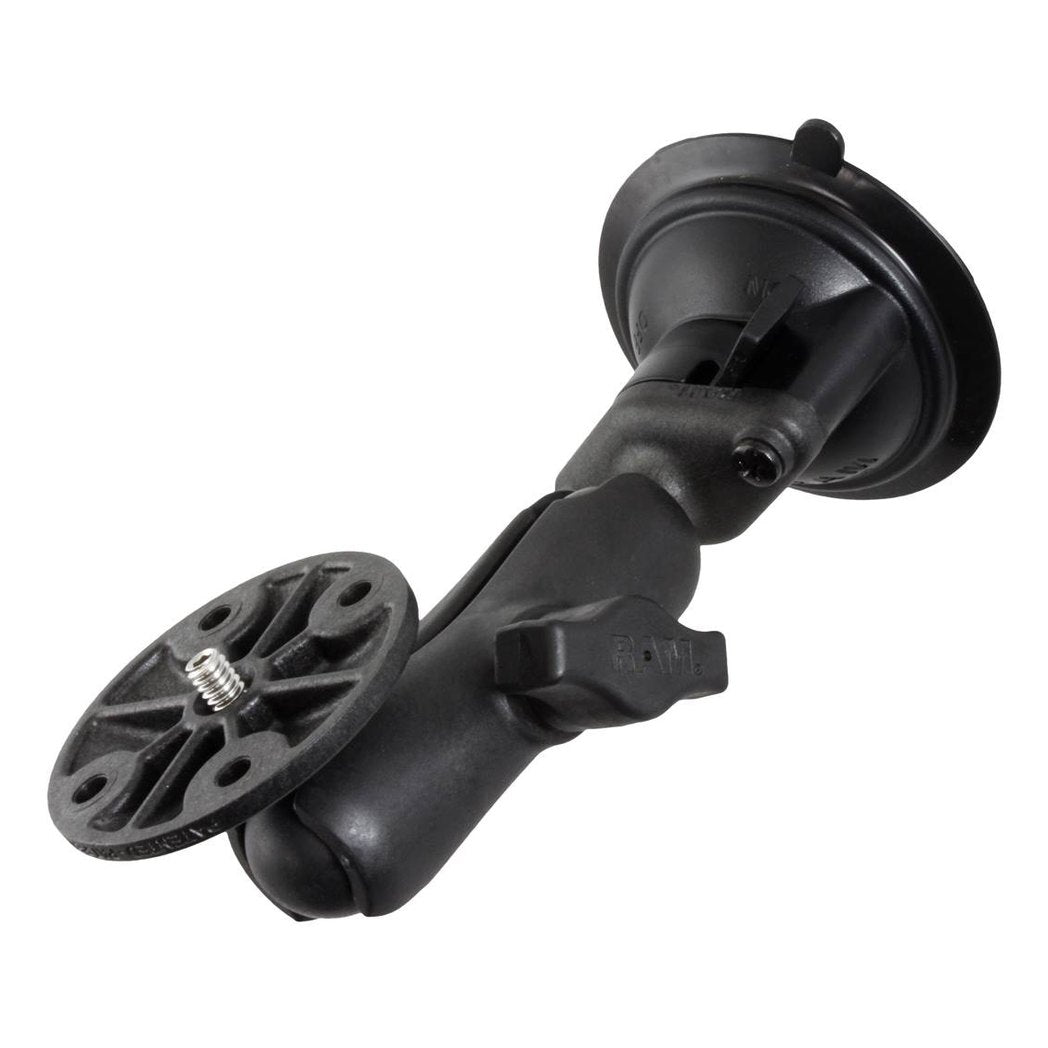

The RAP-B-166-202AU consists of a 3.3" suction cup twist lock base, double socket arm and round base
adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a
strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base.
Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and
stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to
any standard female thread found on camcorders and digital cameras.

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.67 lbs.
