RAP-B-166U_RAM Twist-Lock Composite Suction Cup Double

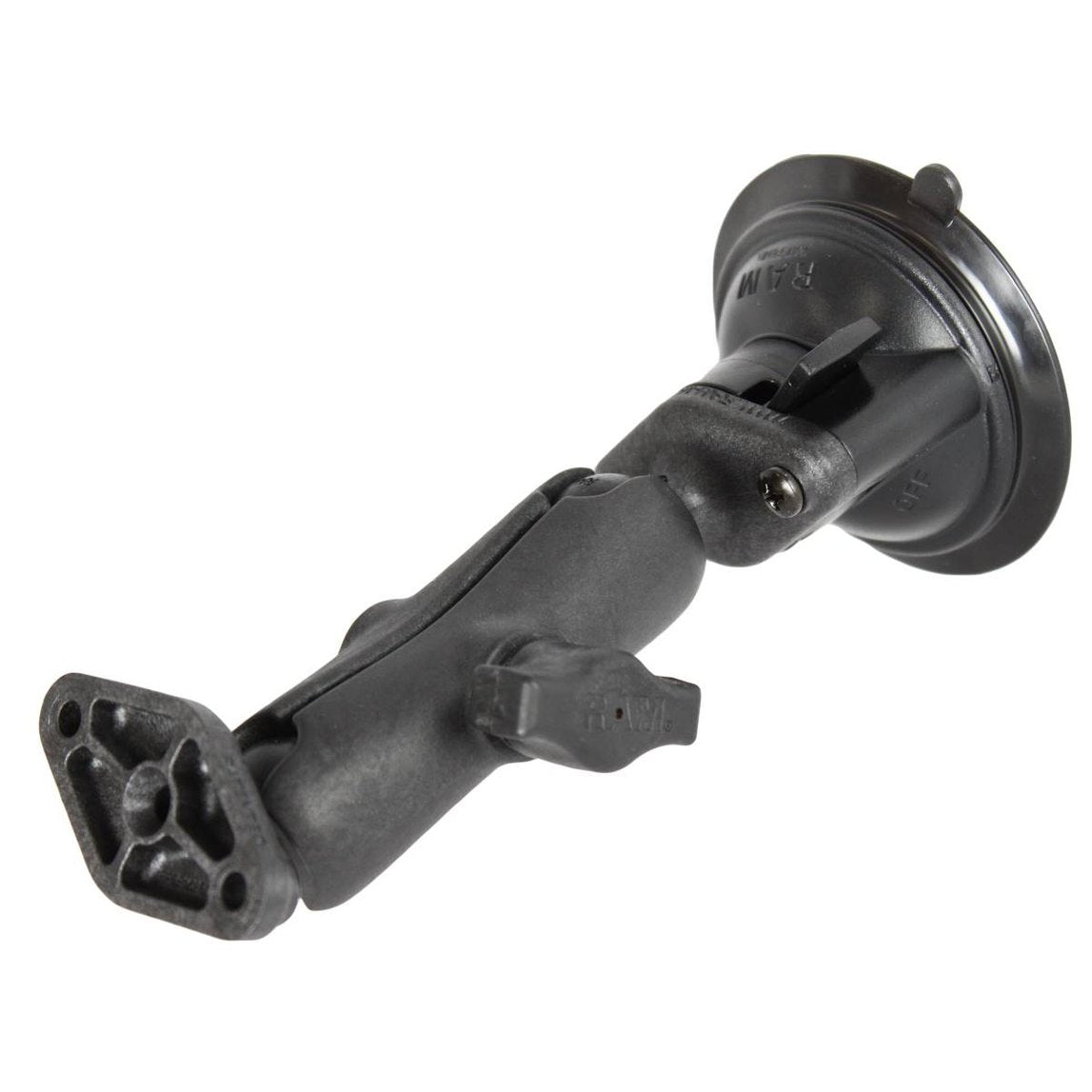

The RAP-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double
socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass
and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole
pattern found on the diamond base adapter will connect to most RAM cradles. Overall Length: 6.75"

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 6.75"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.5 lbs.
