RAM Composite Diamond Ball Base with Backi
RAM Composite Diamond Ball Base with Backi
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442950919
Mfg Part #:
RAP-B-238-BU
Availability:
Out Of Stock
Part Number:
RAP-B-238-BU
Quantity
Couldn't load pickup availability
Share
- Description
- Components

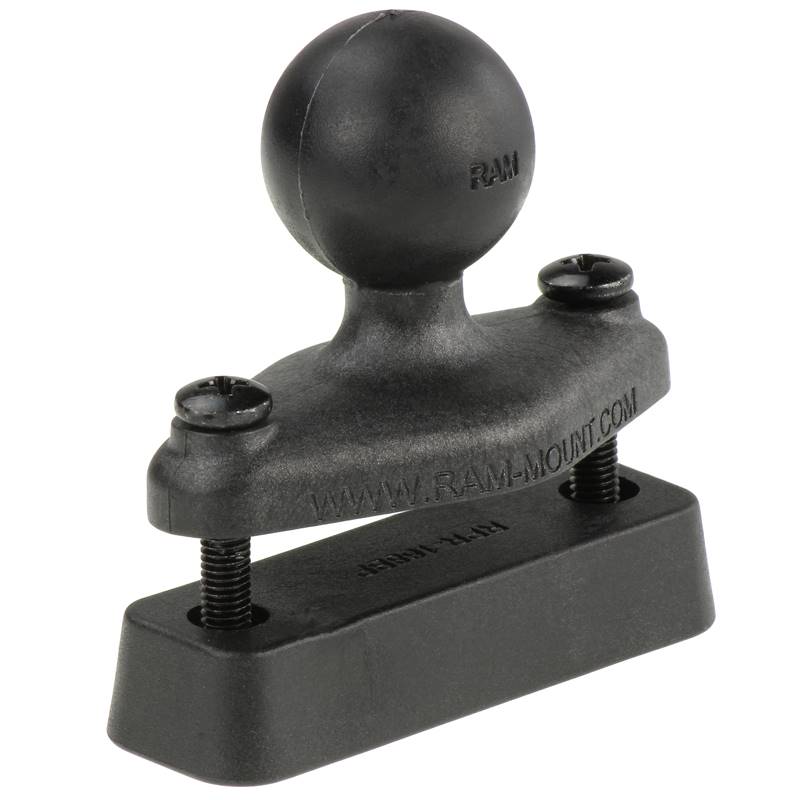

The RAP-B-238-BU consists of a 1" diameter rubber ball connected at right angles to a 2.43" x 1.31"
diamond base. The base has two holes 1.912" from center to center, matching diagonally with the
industry standard 4-Hole AMPS hole pattern. Included with this base is a highstrength composite
backing plate, connected with stainless steel screws and nuts for reinforcing any flat surface that
the ball is mounted against.
HARDWARE INCLUDED
(1) Composite Backing Plate
(2) #10-32 x 1.25" Machine Screws
(2) #10-32 Nylock Nuts
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.15 lbs.
diamond base. The base has two holes 1.912" from center to center, matching diagonally with the
industry standard 4-Hole AMPS hole pattern. Included with this base is a highstrength composite
backing plate, connected with stainless steel screws and nuts for reinforcing any flat surface that
the ball is mounted against.
HARDWARE INCLUDED
(1) Composite Backing Plate
(2) #10-32 x 1.25" Machine Screws
(2) #10-32 Nylock Nuts
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.15 lbs.
