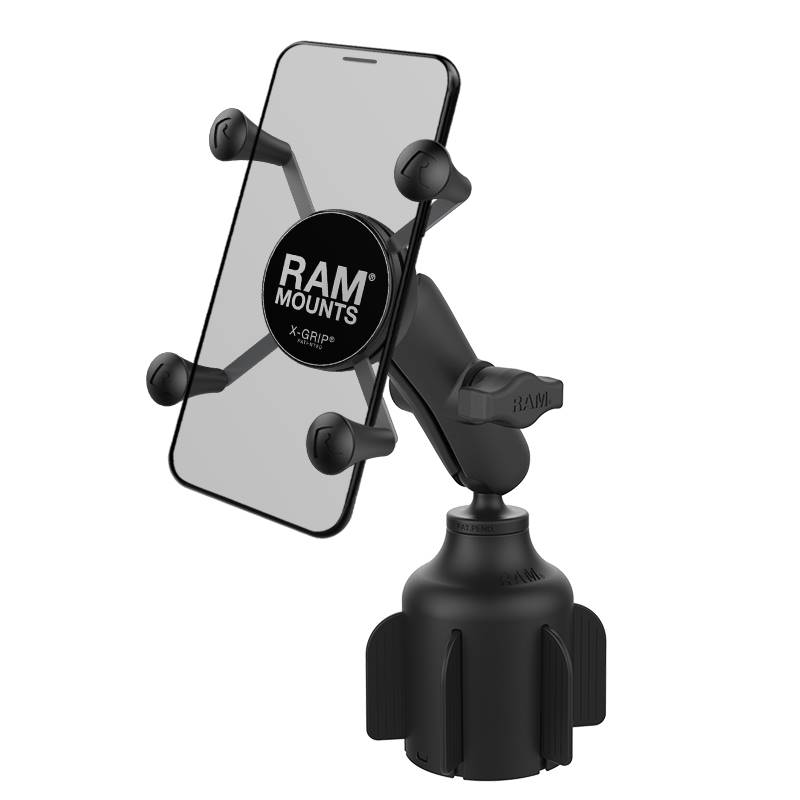

RAM X-Grip Phone Mount with RAM Stubby

OVERVIEW
Optional Tether Included


Sometimes, it's all about the design. If you are looking for a compact mount for your cell phone without that cookie cutter shape, you've found it. The RAM X-Grip

has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. This mount comes with the RAM Stubby

cup holder mount. The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".

The X-Grip

includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.




Cradle Dimensions

Minimum Width = 1.875" (Minimum Height = 4.25")
Maximum Width = 3.25" (Minimum Height = 2.25")
Depth = 0.875"

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps

PRODUCT DIMENSIONS
Overall Height: 9.15"

HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

FEATURES:
Includes RAM Stubby cup holder ball base, medium length B size RAM double socket arm, and
standard RAM X-Grip phone holder

Spring-loaded 'X' design for standard size phones with rubber caps sports great holding power
without hiding your phone; includes optional device tether for peace of mind during rugged use

Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for
durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.55 lbs.
