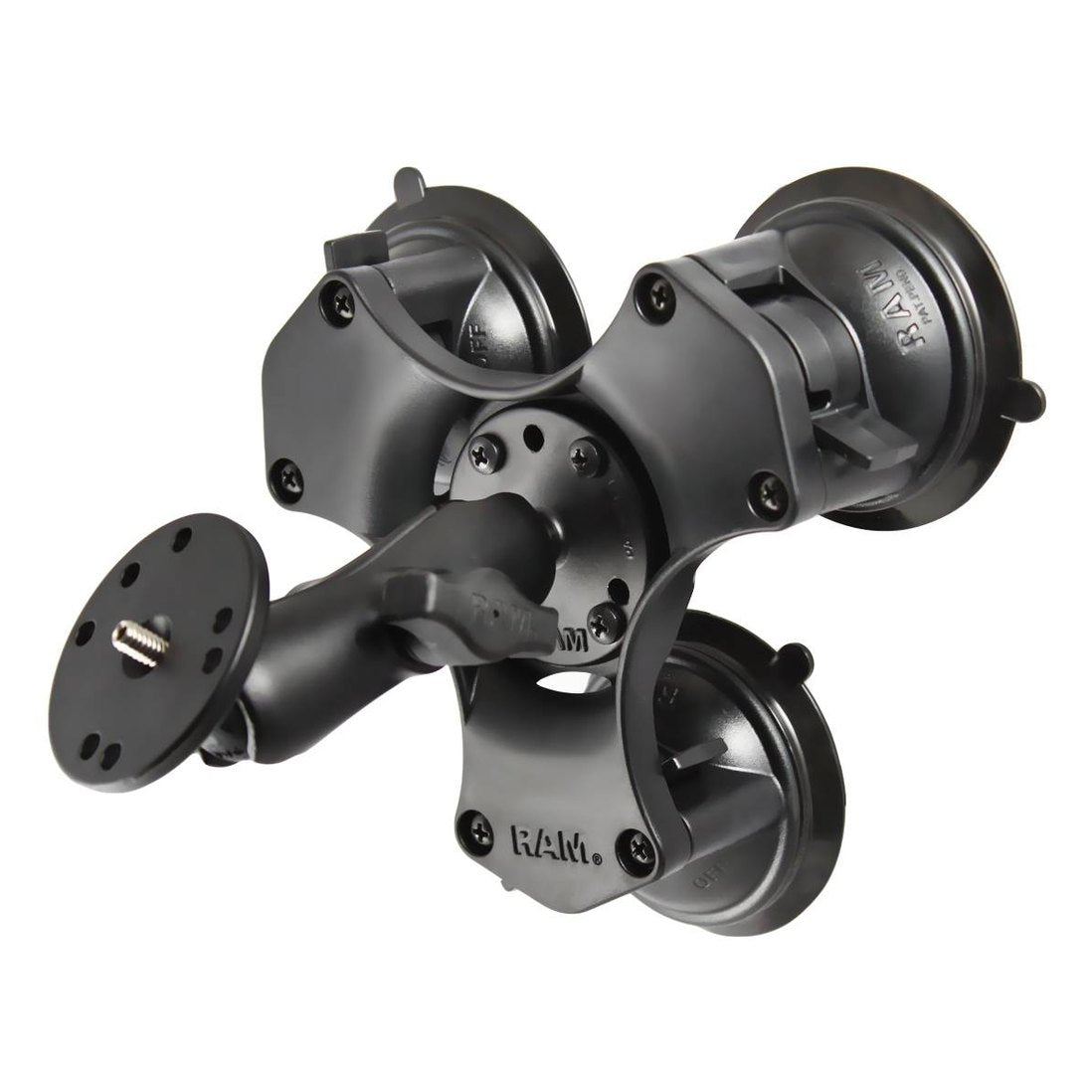

RAP-B-365-224-202AU RAM Twist-Lock Triple Suction Mount

The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double
socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base
is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive
disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base.
Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and
stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to
any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM
1" diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
Assembly Hardware

SUCTION SIZE
(3) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

THREAD PITCH
1/4"-20 x .25"

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.26 lbs.
