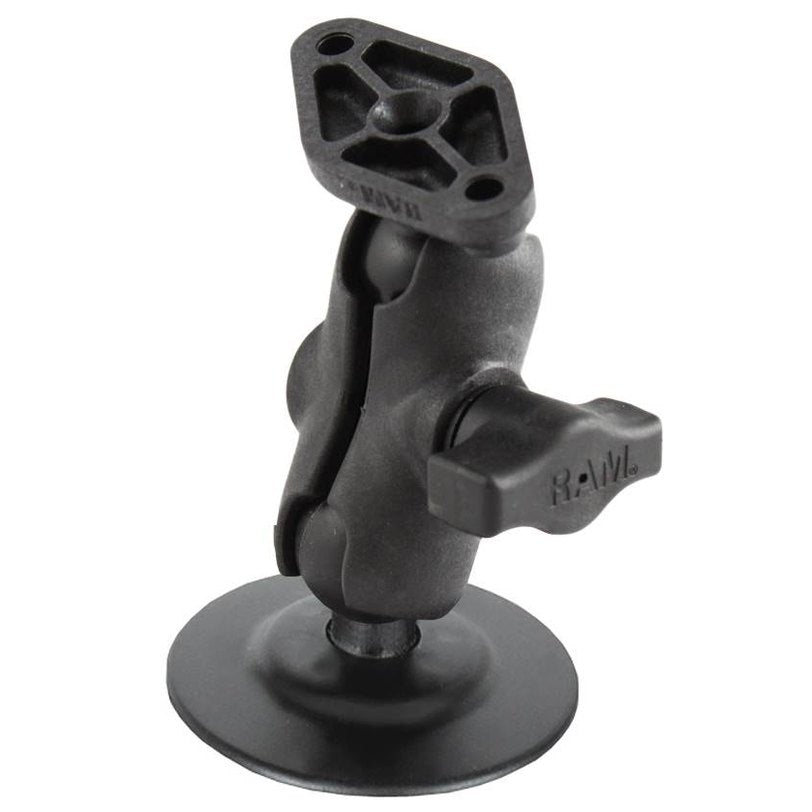

RAM Flex Adhesive Double Ball Mount wi

The RAP-B-378-A-238U consists of the flex adhesive base with 1" ball, SHORT SIZE double socket arm
and and diamond base adapter. The mount is designed with a 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base
adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and
vibration, helping to extend the life of your device. Using a PSA stick pad, put the flex adhesive
mount practically anywhere you want to keep your portable electronics easy to see and always within
your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle,
kayak, boat or vehicle dash is easy. Attaching the patented 1" rubber ball, to one of many RAM arms,
creates the ultimate socket system with multiple adjustment points for articulation and perfect
viewing angles. Overall Height: 4.1”

HARDWARE INCLUDED
(1) 2.5" Double Adhesive Pad
(1) Alcohol Prep Pad

PRODUCT DIMENSIONS
Overall Height: 4.1"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.28 lbs.
