RAP-SB-187-UN7U RAM X-Grip Phone Mount with RAM EZ-Stra

OVERVIEW
Optional Tether Included

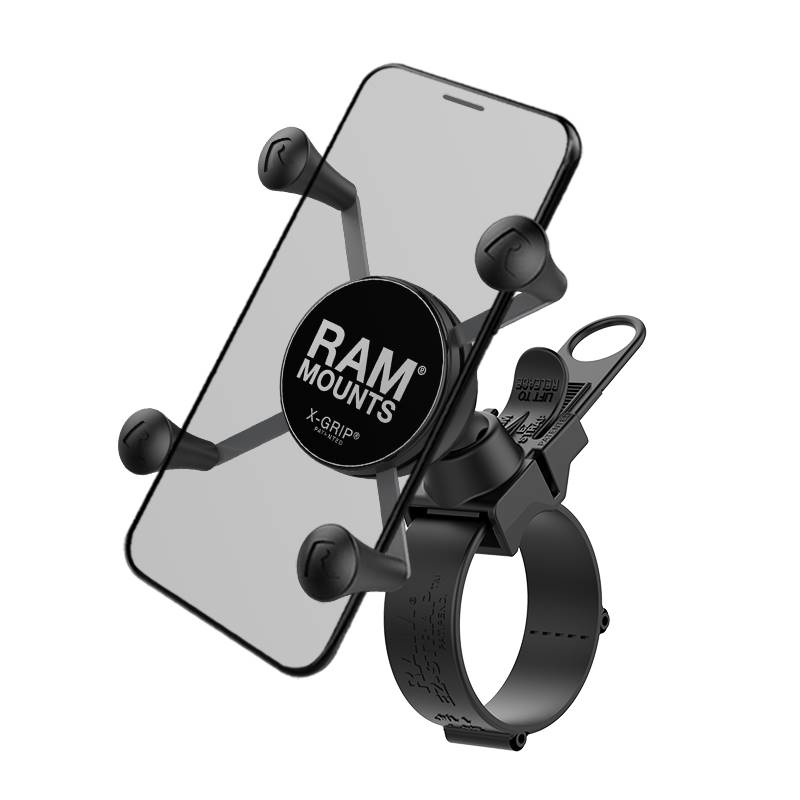

The RAP-SB-187-UN7U consists of the RAM EZ-Strap

base, double ball SHORT arm and universal X-Grip

cradle. The strap can be cut to fit tubing, square rails and irregular shapes from 0.5" to 2.58" in diameter. Multiple adjustment points allow you to move the universal X-Grip

cradle to your optimum viewing position. This mount rotates 180 degrees.

The X-Grip

includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.




Cradle Dimensions

Minimum Width = 1.875" (Minimum Height = 4.25")
Maximum Width = 3.25" (Minimum Height = 2.25")
Depth = 0.875"

HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max

CLAMP RANGE
.5" - 2.58" diameter

BALL/SOCKET SIZE
RAM Snap-Link (3/4")

WEIGHT CAPACITY
.5 lb

MATERIALS
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

WEIGHT
0.35 lbs.
