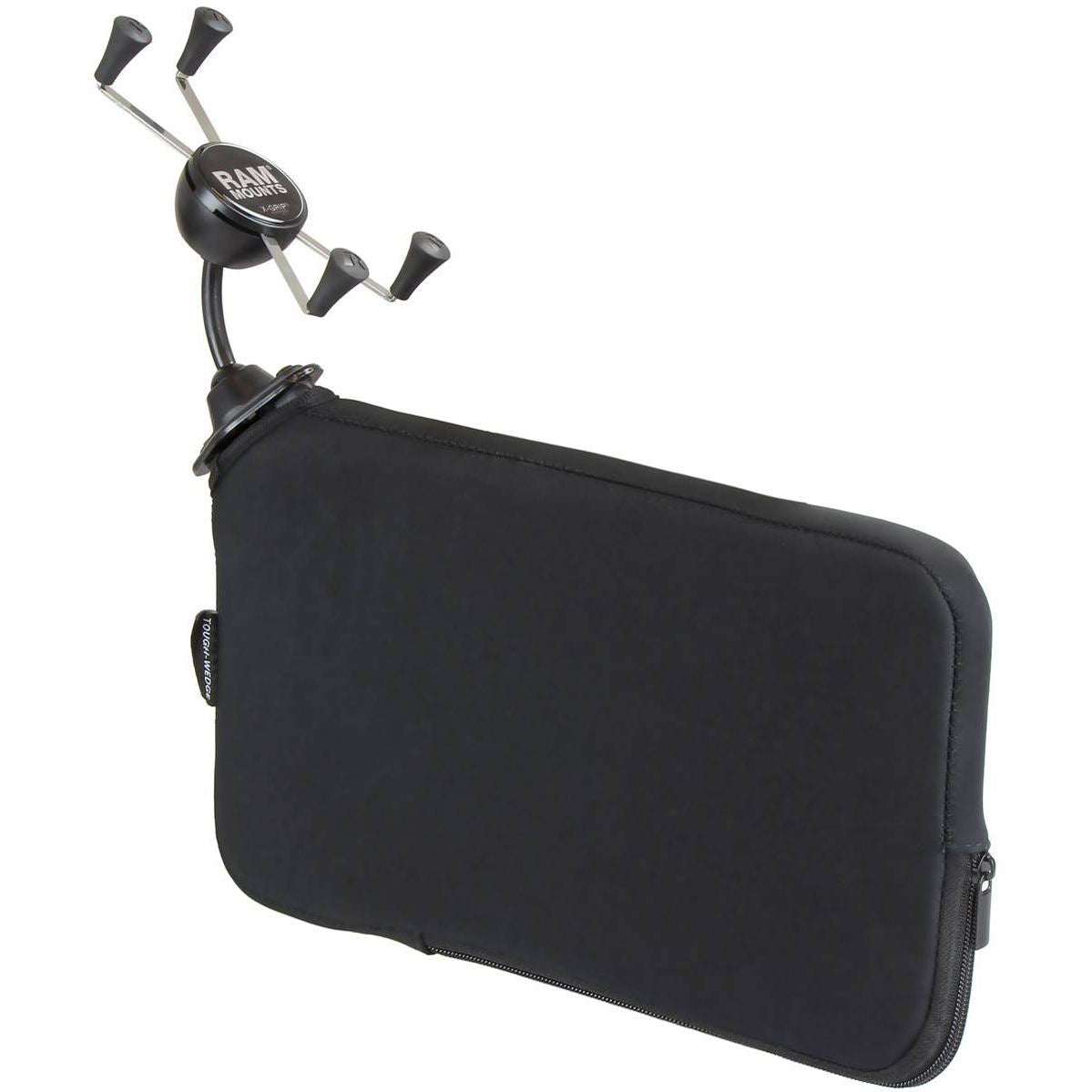

The RAP-SB-407-UN10U consists of the Tough-Wedge, snap-link mount and universal X-Grip cradle. The
Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and center console;
allowing easy access and operation of your mobile device. The Tough-Wedge can also be used for
back-seat applications, inserted into the pockets located on the back of the front seats. The
included X-Grip cradle has a clean and clever four leg design that sports great holding power
without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the
modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max
WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"
BALL/SOCKET SIZE
RAM Snap-Link (3/4")
WEIGHT CAPACITY
.5 lb
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.57 lbs.
Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and center console;
allowing easy access and operation of your mobile device. The Tough-Wedge can also be used for
back-seat applications, inserted into the pockets located on the back of the front seats. The
included X-Grip cradle has a clean and clever four leg design that sports great holding power
without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the
modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max
WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"
BALL/SOCKET SIZE
RAM Snap-Link (3/4")
WEIGHT CAPACITY
.5 lb
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.57 lbs.
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
Tough-Wedgeâ„¢ Dimensions:
- Length: 13.25"
- Height: 8.25"
- Depth: 1"
- Inside Wedge Depth: 0.375" - 0.875"
- Material:High Strength Composite and Neoprene
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.57 lbs.
RAP-SB-238FU
RAP-407BU
RAP-SBA-RRLU
RAM-HOL-UN10U
