RAM Tough-Track - 15" Track for 5/8" - 1
RAM Tough-Track - 15" Track for 5/8" - 1
Regular price
$31.99 USD
Regular price
Sale price
$31.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442007774
Mfg Part #:
RAP-TRACK-B18U
Availability:
Out Of Stock
Part Number:
RAP-TRACK-B18U
Quantity
Couldn't load pickup availability
Share
- Description
- Components

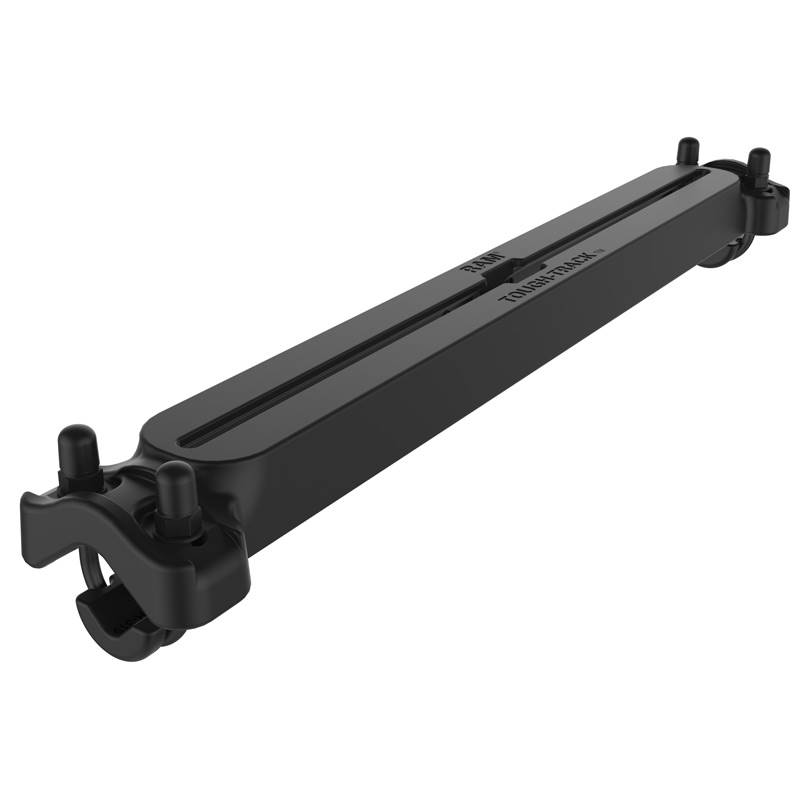

With the RAM Tough-Track for tubes, bars, and rails, create an ideal track mounting surface
compatible with a wide variety of RAM Track Ball mounts and components. This 18” RAM Tough-Track
features a two-hole AMPS hole pattern on the side for attaching a RAM diamond base. All necessary
U-bolt hardware is included to attach the RAM Tough-Track from 5/8” to 1 1/4” tubes, bars, and
rails. Hardware for attaching to a 1 ½” tube, bar, or rail is available separately. Other options
for attaching to irregular shaped rails include the RAM Torque and strap clamp.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for .625" - 1" Rails
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(2) U-Bolt Spacers
(4) #12 Stainless Steel Washers
(4) 1/4"-20 Nylock Washers
(4) Rubber Caps
PRODUCT DIMENSIONS
Inside Track Length: 15"
CLAMP RANGE
.625" - 1.25" diameter
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.02 lbs.
compatible with a wide variety of RAM Track Ball mounts and components. This 18” RAM Tough-Track
features a two-hole AMPS hole pattern on the side for attaching a RAM diamond base. All necessary
U-bolt hardware is included to attach the RAM Tough-Track from 5/8” to 1 1/4” tubes, bars, and
rails. Hardware for attaching to a 1 ½” tube, bar, or rail is available separately. Other options
for attaching to irregular shaped rails include the RAM Torque and strap clamp.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for .625" - 1" Rails
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(2) U-Bolt Spacers
(4) #12 Stainless Steel Washers
(4) 1/4"-20 Nylock Washers
(4) Rubber Caps
PRODUCT DIMENSIONS
Inside Track Length: 15"
CLAMP RANGE
.625" - 1.25" diameter
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.02 lbs.
